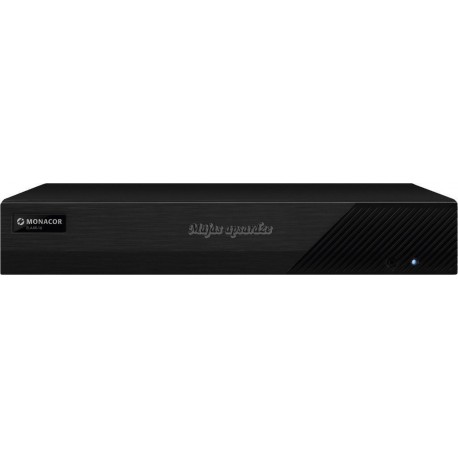

Monacor ELAXR-16 eco line 16 kanālu video rakstītājs

Tirdzniecība

Monacor ELAXR-16 eco line 16 kanālu video rakstītājs

Papildus informācija

398,09 €

Papildus informācija

16-channel ECO Line digital video recorder
  • Automatic recognition of applied camera technology: analogue (960p), AHD (720p/1080p), TVI (1080p)
  • Video compression: H.265
  • Network connection, access via web browser
  • HDMI™ video output (Full HD 1080p)
  • VGA output and BNC output
  • 2 x USB 2.0 interface for exporting data onto a USB flash drive and for connecting USB mouse
  • Remote access possible via many smartphones. Please read the notes under Service/Downloads at www.monacor-international.com
  • Video motion detector, 18 x 22 sensor surfaces
  • Recording time depends on recording rate, recording quality and hard disk capacity
  • Manual recording, motion-triggered or time-controlled recording
  • Search by time list or event list
  • Password protection
  • Brightness, colour, contrast and focus can be adjusted for each channel
  • PTZ cameras can be controlled (PELCO D, PELCO P)
  • Smart Home Ready
  • Supplied with power supply, USB mouse and software package
  • OSD: German, English, French, Spanish, Polish and other languages
  • Instruction manual: German and English

Supplied w/o hard disks.
Matching SATA hard disks are available at option, supports 1 x 6 TB
Remote access possible via smartphone app (SuperLive Plus) for various systems. Please read the notes under Service/Downloads at www.monacor-international.com.
  • Automatic recognition of applied camera technology: analogue (960p), AHD (720p/1080p), TVI (1080p)
  • Video compression: H.265
  • Network connection, access via web browser
  • HDMI™ video output (Full HD 1080p)
  • Supplied w/o hard disks
  • Matching SATA hard disks are available at option, supports 1 x 6 TB
  • With Internet connection, it is possible to access live images and recorded images via smartphone

Please read the notes under Service/Downloads at www.monacor-international.com

Technical Specifications

ELAXR-16

ECO Line 1
Smart Home Ready 1
Video inputs 16 x BNC
Video outputs 1 x HDMI™

1 x VGA

1 x BNC
Audio inputs 1 x RCA
Audio outputs 1 x RCA
Resolution 1920 x 1080 pixels (12 fps)
Video compression H.265
Recording 16 x 12 fps
Menu adjustments on-screen menu (OSD)
Recording mode manual, timer

motion detector
Search mode date and time, event
Lettering OSD
Security password protection
Video loss detection available
Signal device integrated
Interfaces RS485, USB2.0, LAN (RJ45)
Hard disks optional, 1 x 6 TB max. (SATA)
Power supply via encl. power supply
Operating voltage (possible alternative) DC 12 V
Power supply (possible alternative) DC 3 A
Admiss. ambient temp. 0-40 °C
Dimensions 255 x 42 x 233 mm
Width 255 mm
Height 42 mm
Depth 233 mm
Weight 900 g
